Electrical Handholes

OPSD Handholes

Description
Size
Specification Number
E22
24" x 24" Electrical Handhole
30" (H) x 24" x 24"
.76m (H) x 600mm x 600mm (ID)
OPSD# 2112.04
E22M
24" x 24" Closed Bottom Electrical Handhole
30" (H) x 24" x 24"
.76m (H) x 600mm x 600mm (ID)
OPSD# 2112.04M
E27MTO
12" x 20" Rectangle Electrical Handhole
33" (H) x 12" x 20"
.75m (H) x 300mm x 500mm (ID)
OPSD# 2111.05
E29
27" dia. Electrical Handhole
30" (H) x 27" dia.
.76m (H) x 675mm dia. (ID)
OPSD# 2112.03
E31
12" dia. Electrical Handhole
30" (H) x 12" dia.
.76m (H) x 300mm dia. (ID)
OPSD# 2112.01
E32
18" dia. Electrical Handhole
30" (H) x 18" dia.
.76m (H) x 460mm dia. (ID)
OPSD# 2112.02

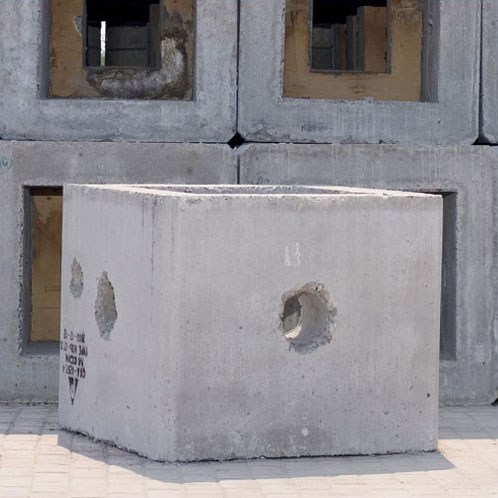

E22

24" x 24" Electrical Handhole

OPSD# 2112.04

Dimensions

30" (H) x 24" x 24"
.76m (H) x 600mm x 600mm (ID)

Frame & Cover option is available: F1 or F2

Drawing

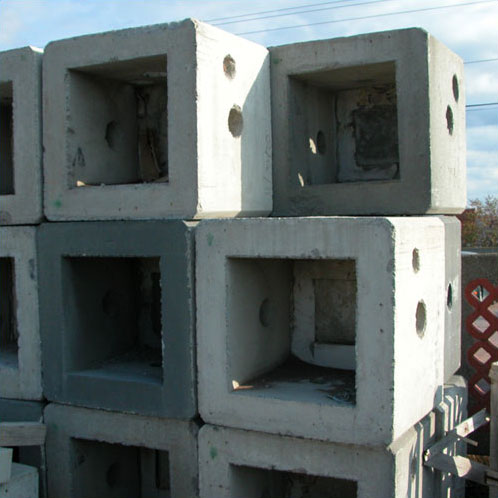

E22M

24" x 24" Closed Bottom Electrical Handhole

OPSD# 2112.04M

Dimensions

30" (H) x 24" x 24"
.76m (H) x 600mm x 600mm (ID)

Frame & Cover option is available: F1 or F2

Drawing

E27MTO

12" x 20" Rectangle Electrical Handhole

OPSD# 2111.05

Dimensions

33" (H) x 12" x 20"
.75m (H) x 300mm x 500mm (ID)

Frame & Cover option is available: F4

Drawing

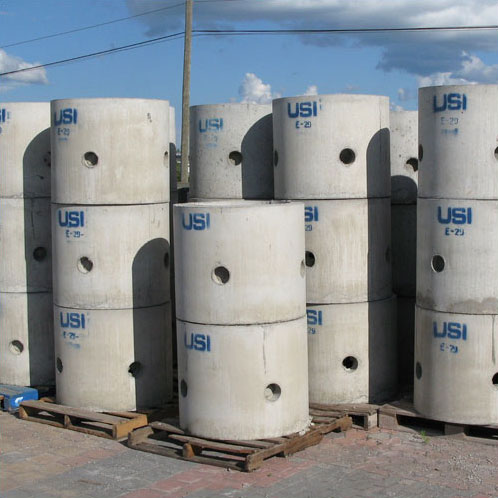

E29

27" dia. Electrical Handhole

OPSD# 2112.03

Dimensions

30" (H) x 27" dia.
.76m (H) x 675mm dia. (ID)

Frame & Cover option is available: F1 or F2

Drawing

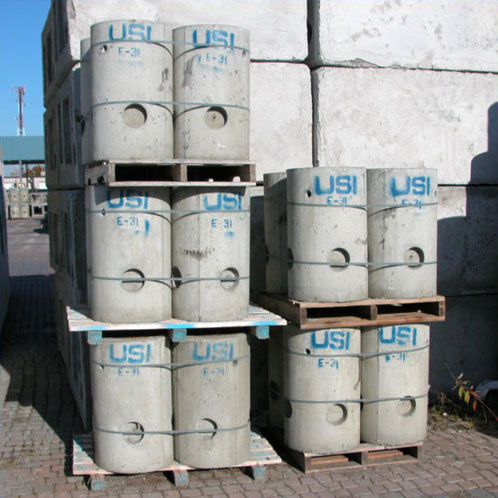

E31

12" dia. Electrical Handhole

OPSD# 2112.01

Dimensions

30" (H) x 12" dia.
.76m (H) x 300mm dia. (ID)

Frame & Cover cast into concrete

Drawing

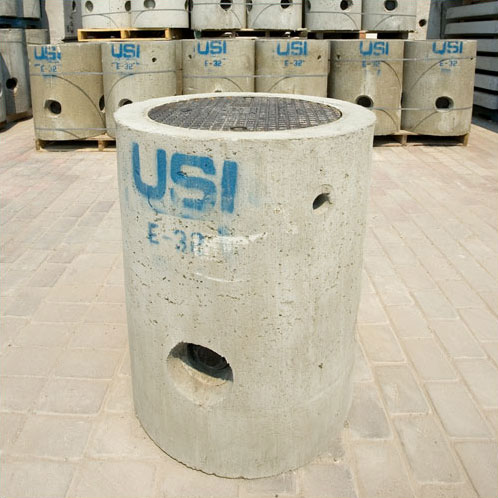

E32

18" dia. Electrical Handhole

OPSD# 2112.02

Dimensions

30" (H) x 18" dia.
.76m (H) x 460mm dia. (ID)

Bolt Down Frame & Cover cast into concrete

Drawing
