Transformer Foundations

Single Phase

Description
Size
Specification Number
E1
48" x 48" Transformer Base
(for use with E2 Pad)
48" (H) x 48" x 48" (OD)
1.2m (H) x 1220mm x 1220mm (OD)

Kingston Hydro K03-03-124

E2
48" x 48" Transformer Pad
(for use with E1 Base)
6" (H) x 48" x 48" (OD)
.15m (H) x 1220mm x 1220mm (OD)
Hydro Ottawa UCS 0003

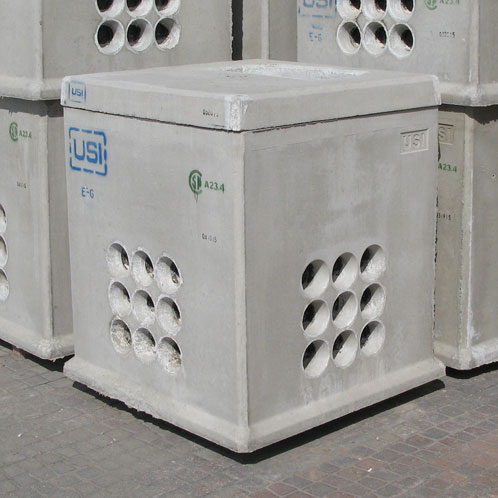

E6B+E7 Combo
Closed Bottom Single Phase Transformer Base and Pad
60" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)
Hydro Ottawa UCS 0003
E6+E7 Combo
Single Phase Transformer Base and Pad
60" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)
Hydro Ottawa UCS 0003
E6
Single Phase Transformer Base
54" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)
Hydro One ED19U-141
E7
Single Phase Transformer Pad
6" (H) x 51" x 51" (OD)
.15m (H) x 1300mm x 1300mm (OD)
Hydro One DL 24953C01
E15
Transformer Base
42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)
Hydro One DU-09-101 & DU-09-201
E15K
Transformer Base
42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

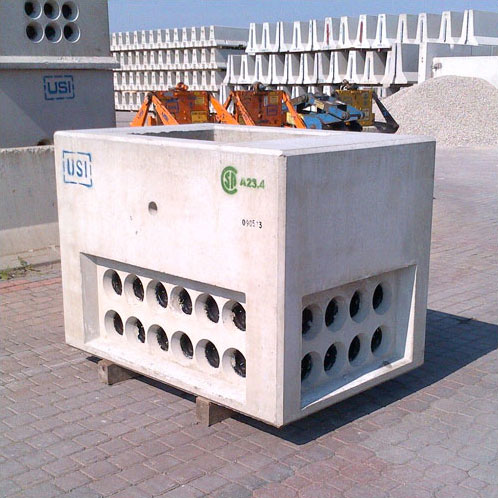

E15PC
Single Phase Transformer Base
42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

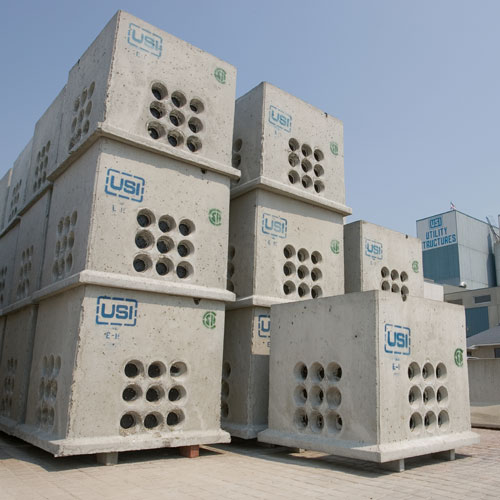

E1

48" x 48" Transformer Base

(for use with the E2 Transformer Pad)

Dimensions

48" (H) x 48" x 48" (OD)
1.2m (H) x 1220mm x 1220mm (OD)

Drawing

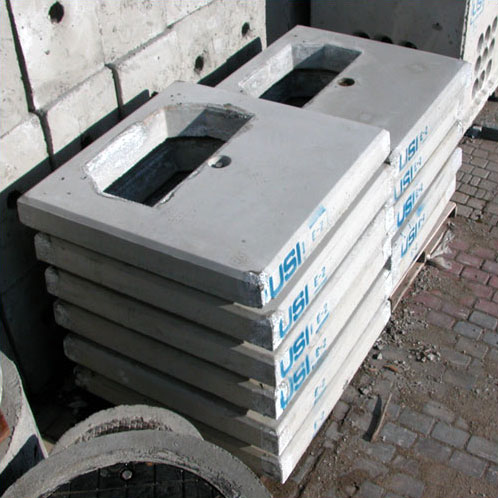

E2

48" x 48" Transformer Pad

(for use with the E1 Transformer Base)

Dimensions

6" (H) x 48" x 48" (OD)
.15m (H) x 1220mm x 1220mm (OD)

Drawing

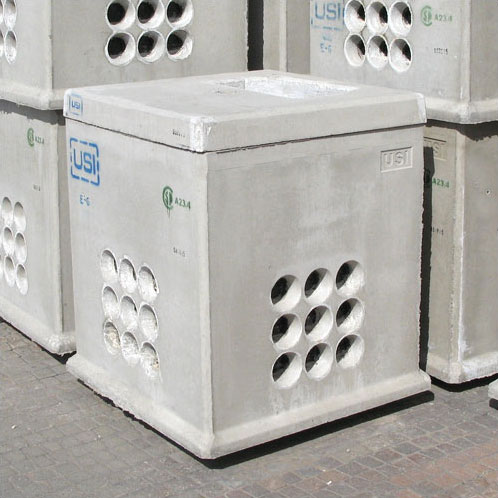

E6B+E7 Combo

Closed Bottom Single Phase Transformer Base and Pad

Kingston Hydro K03-03-124

Dimensions

60" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)

Drawing

E6+E7 Combo

Single Phase Transformer Base and Pad

Hydro Ottawa UCS 0003

Dimensions

60" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)

Drawing

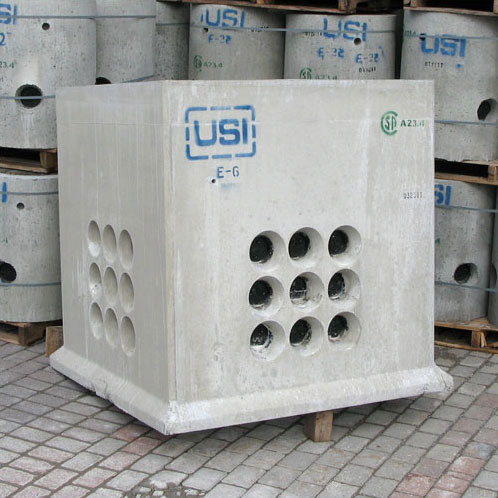

E6

Single Phase Transformer Base

(for use with the E7 Transformer Pad)

Hydro Ottawa UCS 0003

Dimensions

54" (H) x 51" x 51" (OD)
1.37m (H) x 1300mm x 1300mm (OD)

Drawing

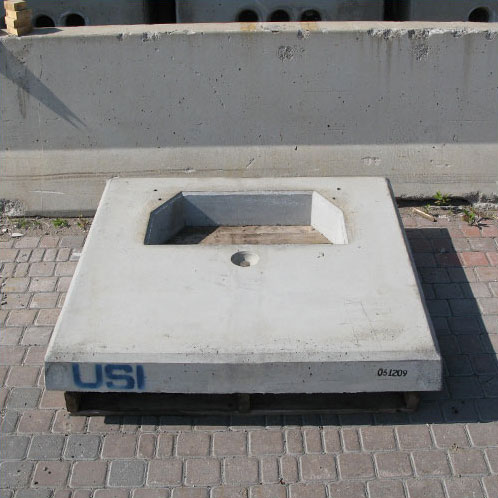

E7

Single Phase Transformer Pad

(for use with the E6 Transformer Base)

Hydro Ottawa UCS 0003

Dimensions

6" (H) x 51" x 51" (OD)
.15m (H) x 1300mm x 1300mm (OD)

Drawing

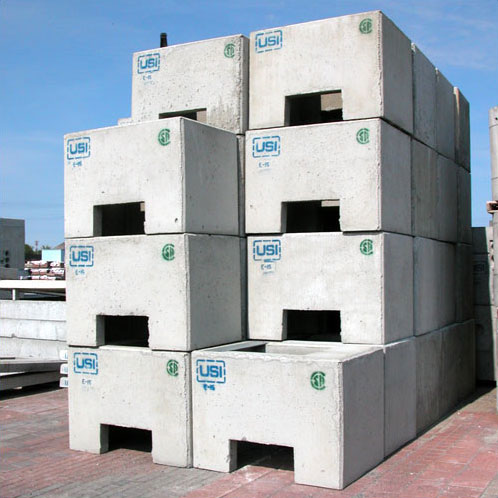

E15

Transformer Base

Hydro One ED19U-141

Dimensions

42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

Drawing

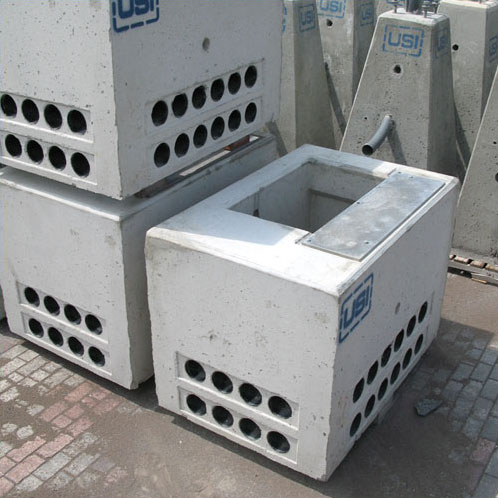

E15K

Transformer Base

Hydro One DL 24953C01

Dimensions

42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

Drawing

E15PC

Single Phase Transformer Base

Hydro One DU-09-101 & DU-09-201

Dimensions

42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

Drawing

Transformer Foundations – Single Phase

Description
Size
Specification Number
E1
48" x 48" Transformer Base
(for use with E2 Pad)
48" (H) x 48" x 48" (OD)
1.2m (H) x 1220mm x 1220mm (OD)

Kingston Hydro K03-03-124

E2
48" x 48" Transformer Pad
(for use with E1 Base)
6" (H) x 48" x 48" (OD)
.15m (H) x 1220mm x 1220mm (OD)
Hydro Ottawa UCS 0003
E6B+E7 Combo
Closed Bottom Single Phase Transformer Base and Pad
60" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)
Hydro Ottawa UCS 0003
E6+E7 Combo
Single Phase Transformer Base and Pad
60" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)
Hydro Ottawa UCS 0003
E6
Single Phase Transformer Base
54" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)
Hydro One ED19U-141
E7
Single Phase Transformer Pad
6" (H) x 51" x 51" (OD)
.15m (H) x 1300mm x 1300mm (OD)
Hydro One DL 24953C01
E15
Transformer Base
42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)
Hydro One DU-09-101 & DU-09-201
E15K
Transformer Base
42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)
E15PC
Single Phase Transformer Base
42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

E1

48" x 48" Transformer Base

(for use with the E2 Transformer Pad)

Dimensions

48" (H) x 48" x 48" (OD)
1.2m (H) x 1220mm x 1220mm (OD)

Drawing

E2

48" x 48" Transformer Pad

(for use with the E1 Transformer Base)

Dimensions

6" (H) x 48" x 48" (OD)
.15m (H) x 1220mm x 1220mm (OD)

Drawing

E6B+E7 Combo

Closed Bottom Single Phase Transformer Base and Pad

Kingston Hydro K03-03-124

Dimensions

60" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)

Drawing

E6+E7 Combo

Single Phase Transformer Base and Pad

Hydro Ottawa UCS 0003

Dimensions

60" (H) x 51" x 51" (OD)
1.52m (H) x 1300mm x 1300mm (OD)

Drawing

E6

Single Phase Transformer Base

(for use with the E7 Transformer Pad)

Hydro Ottawa UCS 0003

Dimensions

54" (H) x 51" x 51" (OD)
1.37m (H) x 1300mm x 1300mm (OD)

Drawing

E7

Single Phase Transformer Pad

(for use with the E6 Transformer Base)

Hydro Ottawa UCS 0003

Dimensions

6" (H) x 51" x 51" (OD)
.15m (H) x 1300mm x 1300mm (OD)

Drawing

E15

Transformer Base

Hydro One ED19U-141

Dimensions

42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

Drawing

E15K

Transformer Base

Hydro One DL 24953C01

Dimensions

42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

Drawing

E15PC

Single Phase Transformer Base

Hydro One DU-09-101 & DU-09-201

Dimensions

42" (H) x 40" x 58" (OD)
1.07m (H) x 1015mm x 1480mm (OD)

Drawing
