Electrical Handholes

Miscellaneous Handholes

Description
Size
Specification Number
E22 (3)
24" x 24" (ID) Square Electrical Handhole
30" (H) x 24" x 24"
.76m (H) x 600mm x 600mm (ID)

Hydro Ottawa UCS 0016

E26
32" x 32" (ID) Square Electrical Handhole
32" (H) x 32" x 32"
.80m (H) x 800mm x 800mm (ID)
City of Ottawa LID004A and T1
E27
12" x 20" (ID) Rectangle Electrical Handhole
39" (H) x 12" x 20"
.99m (H) x 300mm x 500mm (ID)
City of Ottawa LID004D and T4
E28
27" x 27" (ID) Octagonal Electrical Handhole
37" (H) x 27" x 27"
.94m (H) x 686mm x 686mm (ID)

City of Toronto 802.005

E30
12" dia. (ID) Round Electrical Handhole
18" (H) x 12" dia.
.46m (H) x 300mm dia. (ID)
E32M
18" dia. (ID) Round Electrical Handhole
43" (H) x 18" dia.
1.1m (H) x 460mm dia. (ID)

E22 (3)

24" x 24" (ID) Square Electrical Handhole

Dimensions

30" (H) x 24" x 24"
.76m (H) x 600mm x 600mm (ID)

c/w three (3) duct terminators per side

Drawing

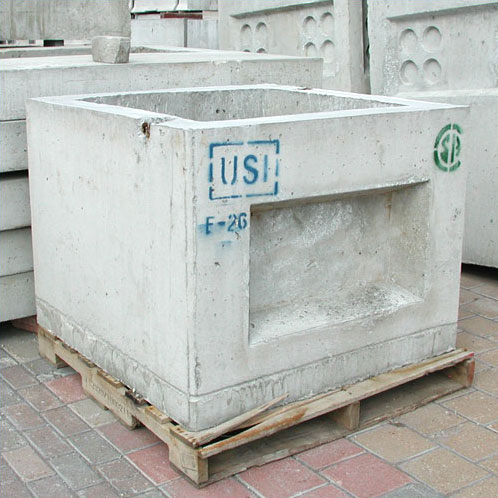

E26

32" x 32" (ID) Square Electrical Handhole

Hydro Ottawa UCS 0016

Dimensions

32" (H) x 32" x 32"
.80m (H) x 800mm x 800mm (ID)

Drawing

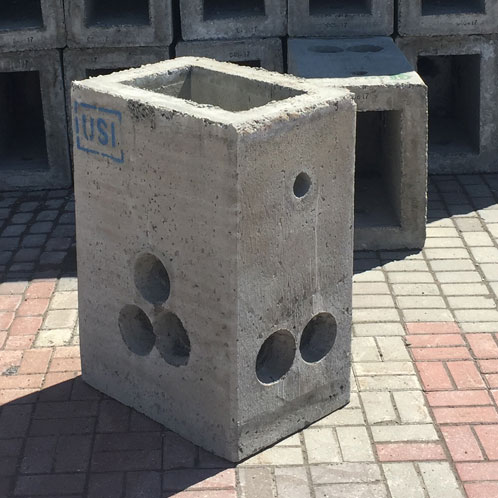

E27

12" x 20" (ID) Rectangle Electrical Handhole

City of Ottawa LID004A and T1

Dimensions

39" (H) x 12" x 20"
.99m (H) x 300mm x 500mm (ID)

Drawing

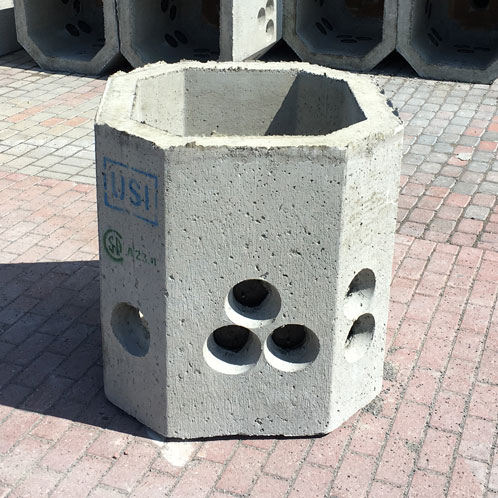

E28

27" x 27" (ID) Octagonal Electrical Handhole

City of Ottawa LID004D and T4

Dimensions

37" (H) x 27" x 27"
.94m (H) x 686mm x 686mm (ID)

Drawing

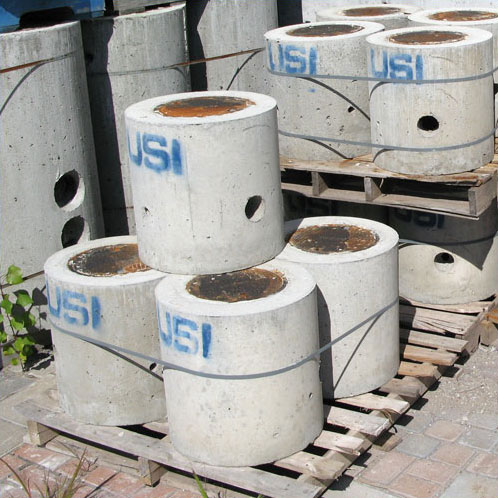

E30

12" dia. (ID) Round Electrical Handhole

Dimensions

18" (H) x 12" dia.
.46m (H) x 300mm dia. (ID)

c/w Cast-In Frame & Cover

Drawing

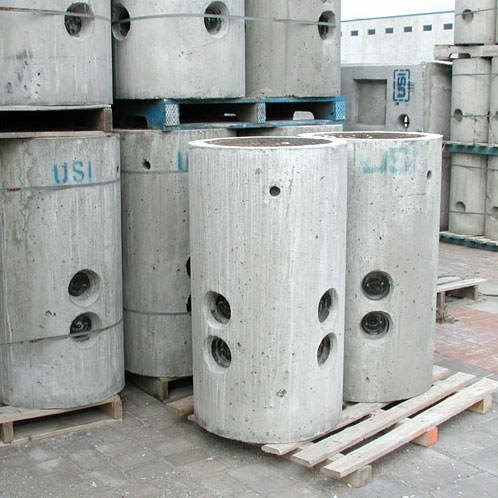

E32M

18" dia. (ID) Round Electrical Handhole

City of Toronto 802.005

Dimensions

43" (H) x 18" dia.
1.1m (H) x 460mm dia. (ID)

c/w Cast-In Frame & Cover

Drawing
